Innovations in Optics' projectors achieve spatially uniform illumination fields by combining our patented COB LED technology and efficient, non-imaging, homogenizing optics with precision re-imaging lens systems.

With exceptional uniformity of light and brightness, these are well suited in the Specialty Illumination, Inspection & Measurement, and Machine Vision applications. We have demonstrated LED illuminator technology to replace mercury-xenon, tungsten-halogen, and low-pressure sodium arc lamps for high volume manufacturing.

Multiple, high intensity patterns at long working distances

Spatially uniform illumination fields

Multiple, individually addressable wavelengths


Embracing the push for environment-friendly products, the LumiBlaze™ high uniformity illuminator at 590nm replaces low pressure sodium arc lamps for inspection applications.

The LED Broadband Multispectral Illuminator is also capable of replacing tungsten-halogen lamps. The LED wavelength distribution can be tailored to suit the application and controlled individually for longer lifetime. It can also be used singly or in an array to increase the illumination field.


  • Multispectral
  • Highly uniform (non-uniformity  5%)
  • Multiple operational modes: CW, PWM, pulsed
  • Nominal 14°X 14° FWHM far field
  • 4 lens options available. 25mm, 50mm, 17mm*, 75mm*.

*Availability subject to MOQ.


Industrial & Commercial

  • Flood source illumination
  • Inspection
  • Hyperspectral and multispectral imaging
  • Surface defect detection

LumiBlazeR™ ​

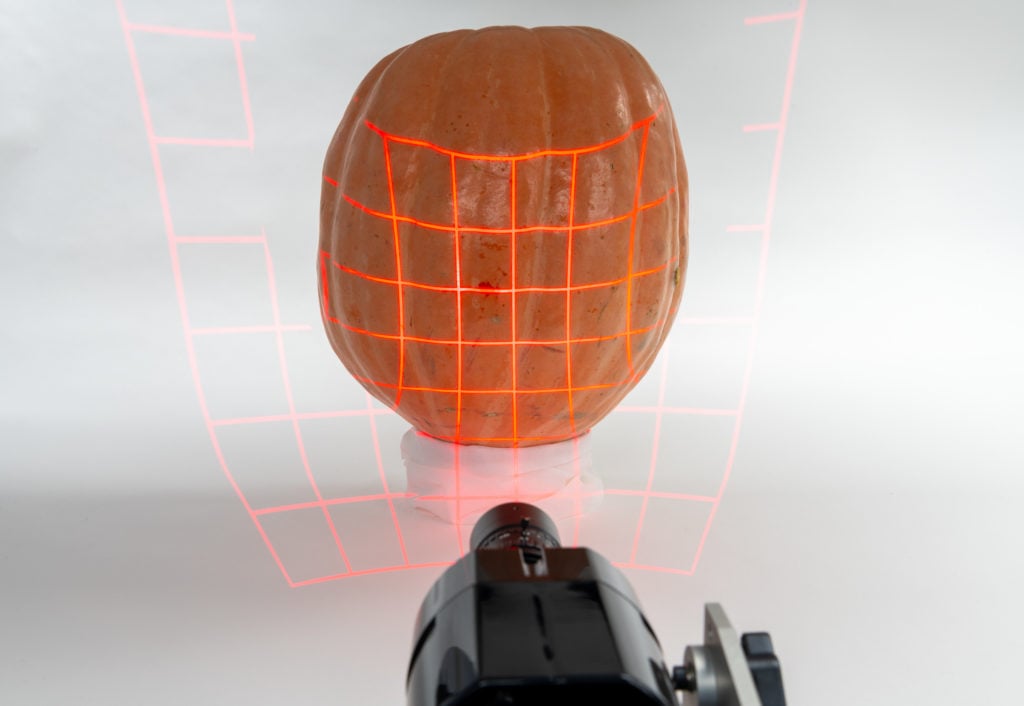

A high power LED Fixed-Pattern Projector for structured lighting and stereovision in 3D machine vision. A near infrared version is suited for video identification in long-range CCTV security and surveillance.​


  • Multiple precision reticles

  • Patterns: lines, grids, point clouds
  • Designed for 1” format C-mount lenses
  • Multiple operational modes: CW, PWM, pulsed
  • High intensity patterns at long working distances


Industrial & Commercial

  • 3D metrology
  • Vision guided robotics
  • Road pavement inspection
  • Surface defect inspection
  • Biometrics – gesture recognition

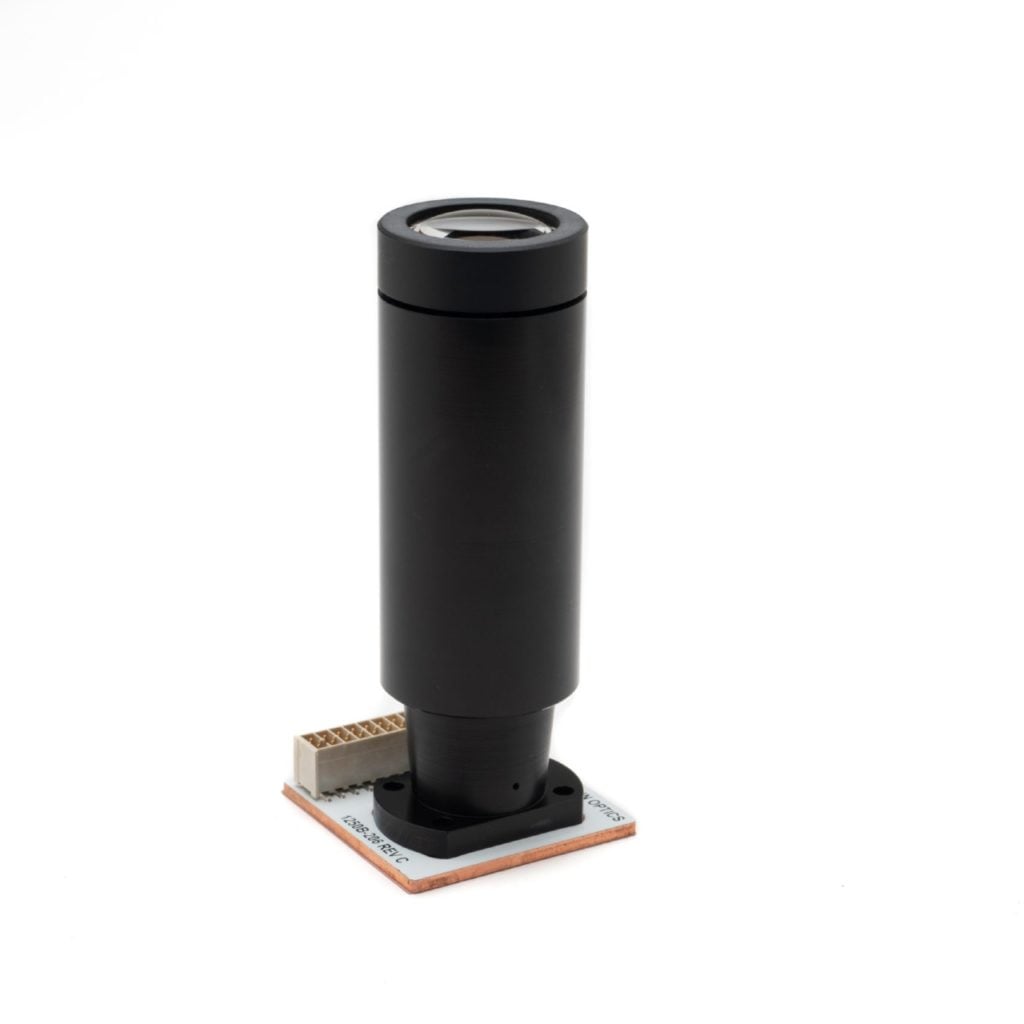

The LumiPro™​ is a focusable projector producing a square illuminated area in far-field; a variable 100mm X 100mm illumination field.


  • Adjustable focal distance
  • Integrated filter option
  • Single or multi-wavelength
  • Individually addressable wavelengths


Medical & Life Sciences

  • Medical fluorescence imaging
  • Flat panel display (FPD) inspection
  • Illumination for night guidance
  • Flat field illumination
  • Forensics embedded light source
  • Flood source illuminator

Inquire Now

Contact us today to learn more about Innovations in Optics’ custom system capabilities and to explore how we can help you solve your unique optical challenge.
