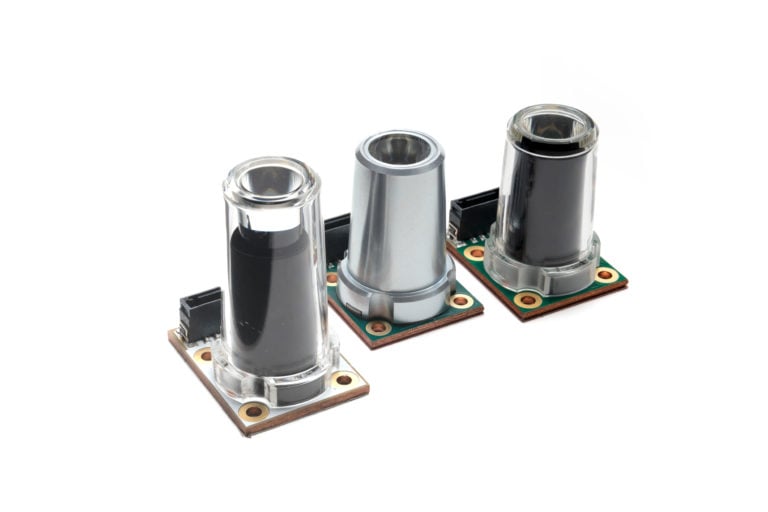

LumiBright™ UV through NIR

LumiBright™ light engines feature non-imaging optics that direct light from an LED array into a desired cone angle with highly uniform illumination. The two standard far-field half-angles are 20 and 40 degrees. Available LED wavelengths range from UV to NIR, broadband white & multispectral.

The light engines support easy integration into OEM or end-user systems. These compact devices can be operated at tens of watts drive power to emit several watts of output. LumiBright light engines provide intense and stable optical power, short warm-up time, energy efficiency, low maintenance and long life.

Uniformity

Multi-configurable

Thermally controlled for high brightness and long-life

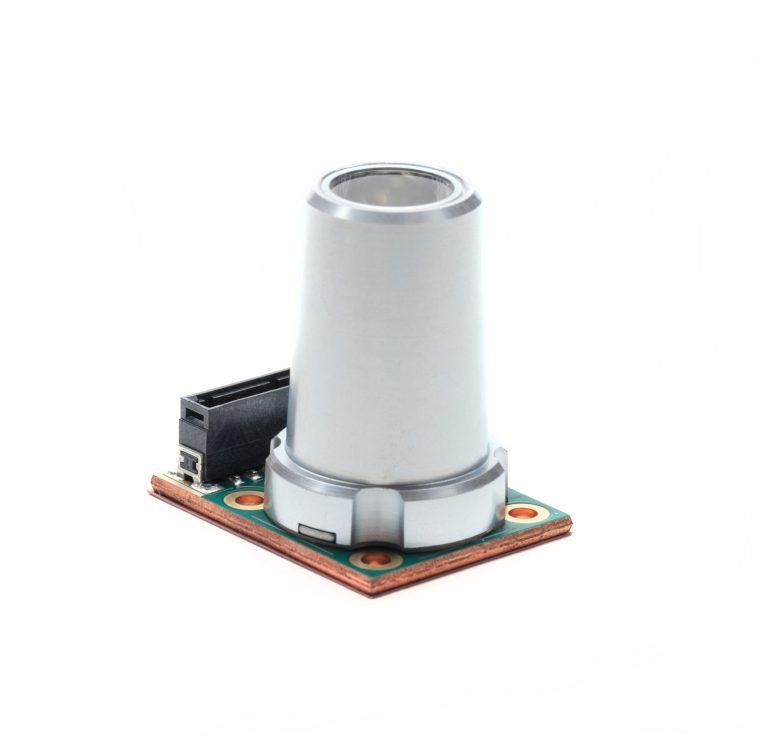

LumiBright™ Visible & Near Infrared

The latest generation of chip-on-board LED light engines that deliver high radiant power.

Features:

  • Optical power up to 35 Watts or 4000 Lumens
  • UV through visible and near infrared
  • Thermally controlled for long-life and high brightness
  • Uniform near and far fields
  • Continuous high current or pulsed operation

LumiBright™ Whites

Providing high luminous flux, white LED illumination often used to couple to optical fibers, bundles and light guides.

Features:

  • Intense and stable optical power
  • Cool and warm whites
  • Small footprint
  • Continuous high current or pulsed operation
  • Support fiber apertures 3.0mm – 8.0mm

LumiBright™ Ultraviolet

IOI is excited to offer LumiBright™ UV LED light engines incorporating state-of-the-art technology and glass optics optimized for higher UV output.

Features:

  • Up to 30W of optical output
  • Wavelength range from 365nm through 440nm
  • Customized spectral composition in single light engine
  • Fused silica optics for long-life, high power operation
  • Uniform near and far fields
  • Continuous high current or pulsed operation

Applications

Medical & Life Sciences

  • Fluorescence excitation & Imaging
  • Western blot imaging
  • Real-time PCR
  • Microscopy
  • Surgical & dental

Learn More

Industrial & Commercial

  • Illumination
  • Remote lighting for Inspections & measurement
  • Spot curing

Learn More

Comparison Table Data for LumiBright™ Light Engines

Comparison2600N-12600N-22400B-12400B-32400B-42400B-52600N-7
LumiBright™ Whites: 2400B-4LumiBright™ Whites: 2400B-5
Effective Output Aperture (mm)15.313.58.05.17.54.813.9
Numerical Aperture.34.34.66.60.66.60.34
Far Field Half-Angle (Degree FWHM)20°20°41°37°41°37°20°
Data Sheet

Inquire Now

Contact us today to learn more about Innovations in Optics’ custom system capabilities and to explore how we can help you solve your unique optical challenge.
