The versatile and powerful LumiFiberTM devices are ideal for fiber optic applications in industrial, medical, and in laboratory equipment. The couplers incorporate LumiBrightTM light engines with interfaces for light guides or fiber bundles. The Model FC 1700A-100 supports up to a 2 mm fiber bundle using an SMA 905 connector.
A LumiFiberTM provides a reliable, compact, homogeneous, and robust light source with up to 25 watts of visible/UV/NIR light – ideal for use in high performance endoscopes and borescopes. Thermal management is key to performance and lifetime. Multiple options are available.

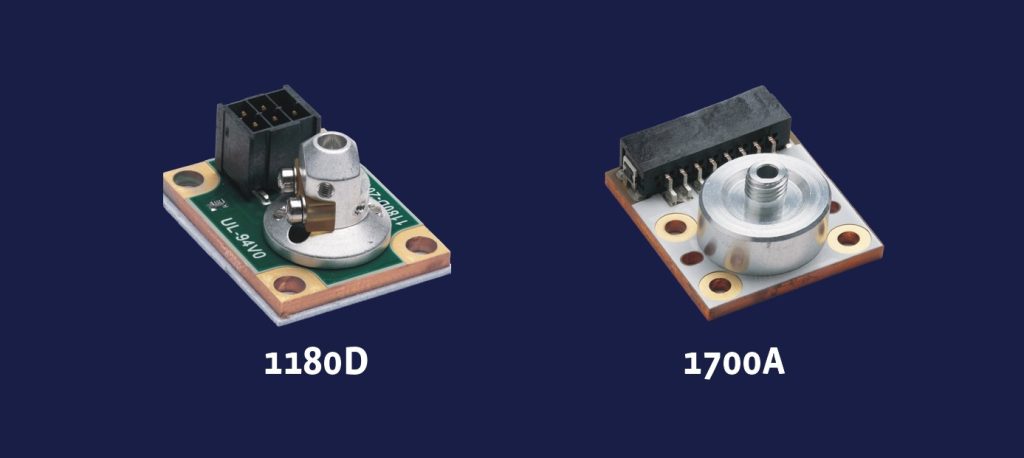

The LumiFiberTM 1700A will support up to 2.0mm fiber bundle. There are options for 1 to 4 LED die in single or multicolor configurations.
Our products are integrated into video borescopes at leading manufacturers.
The LumiFiberTM 1180D provides a robust, compact, homogeneous, and robust light source with up to 5 watts of VIS, NIR, UV, ideal for use in high performance endoscopes and borescopes
The maximum coupling efficiency for the Model 2400B-4 requires the use of a fiberoptic or liquid light guide with equivalent specifications for both the nominal values of Numerical Aperture (NA0) and Clear Aperture (CA0).
When the light guide design parameters of NAf or CAf are smaller than the nominal values of the Model 2400B-4, the coupling efficiency is reduced by the square of the ratios, (NAf/NA0)2and/or (CAf/CA0)2.Other factors that contribute to coupling efficiency are the reflectance loss at the face of the fiberoptic or light guide, as well as the packing fraction when using a fiber bundle.
It delivers intense and stable optical power into SMA 905 fibers up to 2mm core diameter and fiber bundles up to 7.5mm across UV through visible and NIR wavelengths in a small footprint with long-life LEDs and thermal management that includes an NTC temperature sensor.

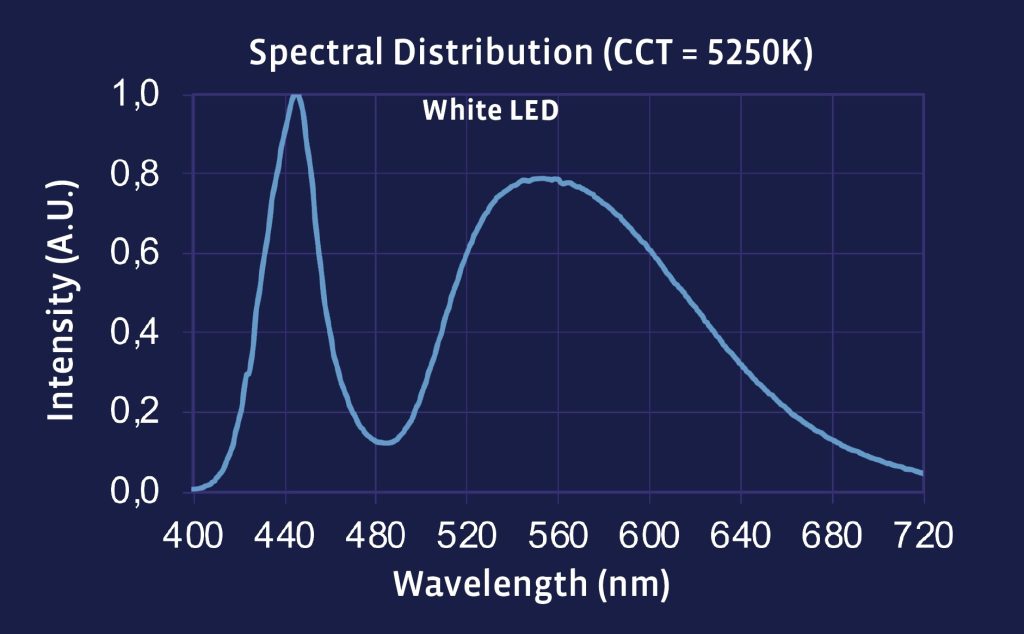

Up to 25 W of visible/UV/NIR light depending on the model and wavelength. Specific configurations deliver greater than 150 lumens into a 1.8 mm diameter fiber.
Interfaces for light guides or fiber bundles, including models that support up to 2.0 mm SMA 905, 7.5mm fiber bundles.
Microscopy, real-time PCR, endoscope and microscope illumination, dental curing and imaging, UV curing, remote lighting for inspection, and integration into video borescopes.
Thermal management is integral to performance and lifetime; an NTC temperature sensor is included for monitoring.
