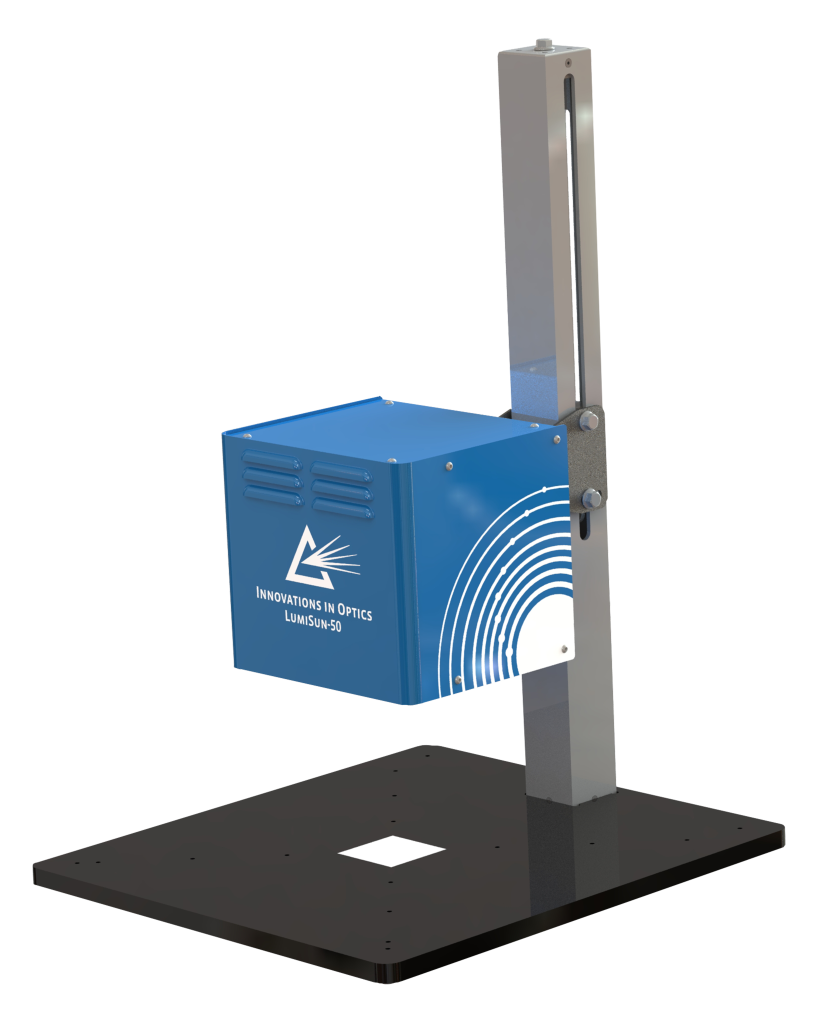

LumiSun-50

Class A+A+A+

LED Benchtop Solar Simulator

*New model: 6001A

Features

  • IEC Class A+A+A+ compliant (AM1.5G)
  • Compact, low cost
  • AM1.5G Irradiance 0.1 to 1.2 Suns
  • AM0 at 1 Sun (Class AAA compliant)
  • Long LED Lifetime > 20,000 hours
  • Spectral range 350-1250nm
  • 35 λ individually controlled
  • 50 x 50mm highly uniform area (also for individual λ’s)
  • User-friendly GUI allows individual control of each λ
  • RS485 & USB computer connection (Modbus RTU)
  • Superior matching to AM1.5 Global Solar Spectrum
  • Pre-programmed & user-defined adjustable spectra
  • TEC – superior spectral intensity stability
  • Ease of alignment by integrated laser diodes
  • Steady state or pulsed modes
  • LED current closed loop control

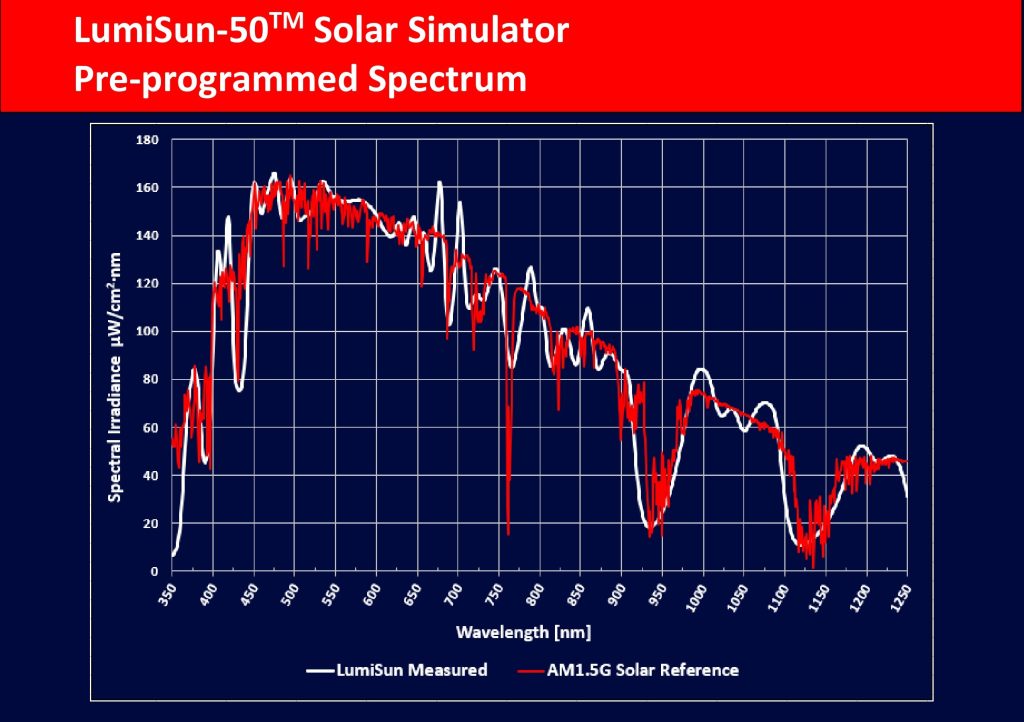

AM1.5G spectral deviation:

< 9%    400nm-1100nm
< 12%  350nm-1250nm
< 15%    300nm-1200nm

Applications

  • PV Cell Testing & Research
  • Photochemistry
  • Biological
  • Phototherapy Research
  • Photodynamic Therapy Research
  • Materials Testing
  • Weathering Tests
  • Test Machine Vision sensors
  • Test LiDAR sensors
  • Multispectral, Hyperspectral

About the LumiSun-50

The LumiSunTM series includes our new innovative, compact benchtop LED solar simulator that meets IEC 60904-9, 60904-3 Class A+A+A+ for spectral match, nonuniformity of irradiance, and temporal stability.
Output power can be varied from 0.1 to 1.2 SUNS, and user-friendly operation is supported by advanced GUI. Remote digital control is enabled by an RS-485 interface with Modbus RTU communication protocol.

LumiSun-50 incorporates the same Innovations in Optics’ [IOI] IP as our OEM solar simulators sold in the thousands to leading PV manufacturers. IOI’s patent pending light collection optics and thermal management enable superior temporal stability and uniformity not only for the entire spectrum, but for individual wavelengths as well.

LumiSun-50 provides A+A+A+ illumination over a 50x50mm area, making it ideal for use in research labs to measure the efficiency and spectral response of PV cells, as well as a range of other applications such as photobiology, solar degradation, and other sunlight research studies. Unlike bulky, expensive, environmentally unfriendly lamp-based units, LumiSun-50 employs a multi-wavelength array of long lifetime LEDs that are driven independently and can be user-controlled to set spectra.

The LED light source is thermoelectrically cooled and contained within an air-cooled housing that can rotate the angle of the illumination plane.
The optimal working distance is adjusted by converging a pair of red dots from integrated laser pointers.

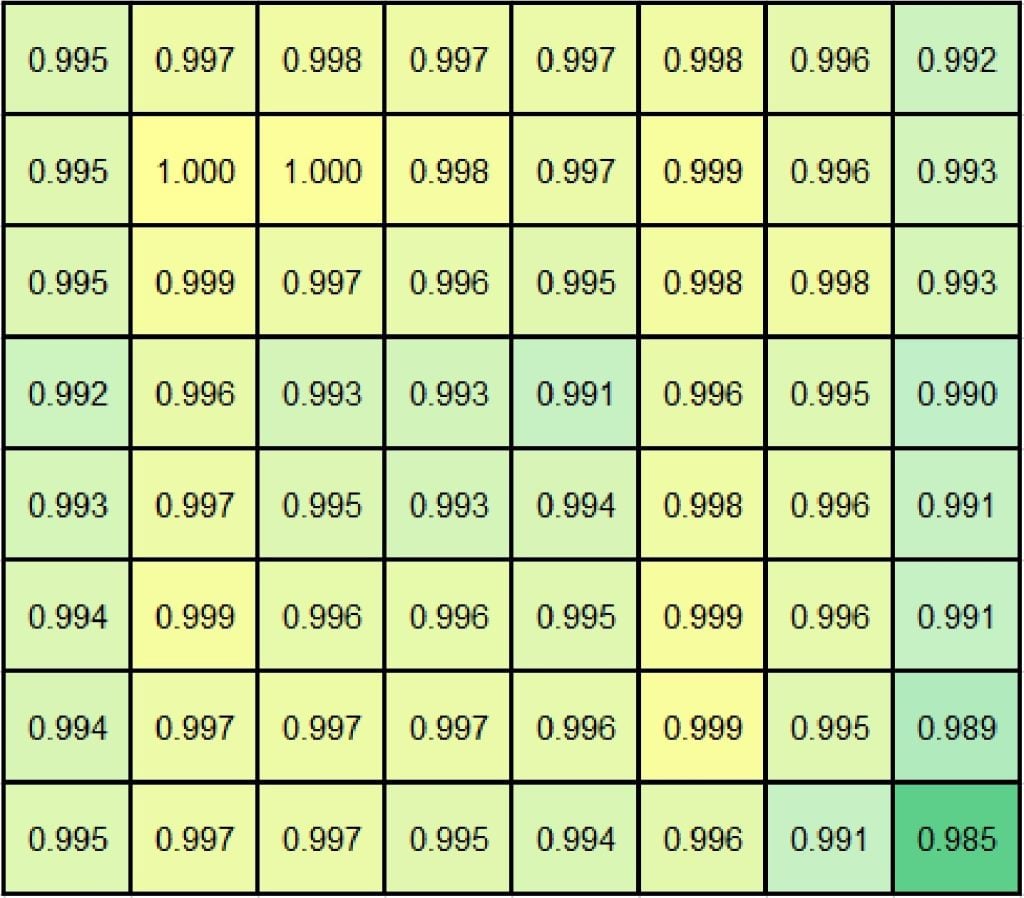

Uniformity

A+

Measured non-uniformity

0.76%

Over entire illumination field

*Also excellent for each wavelength independently

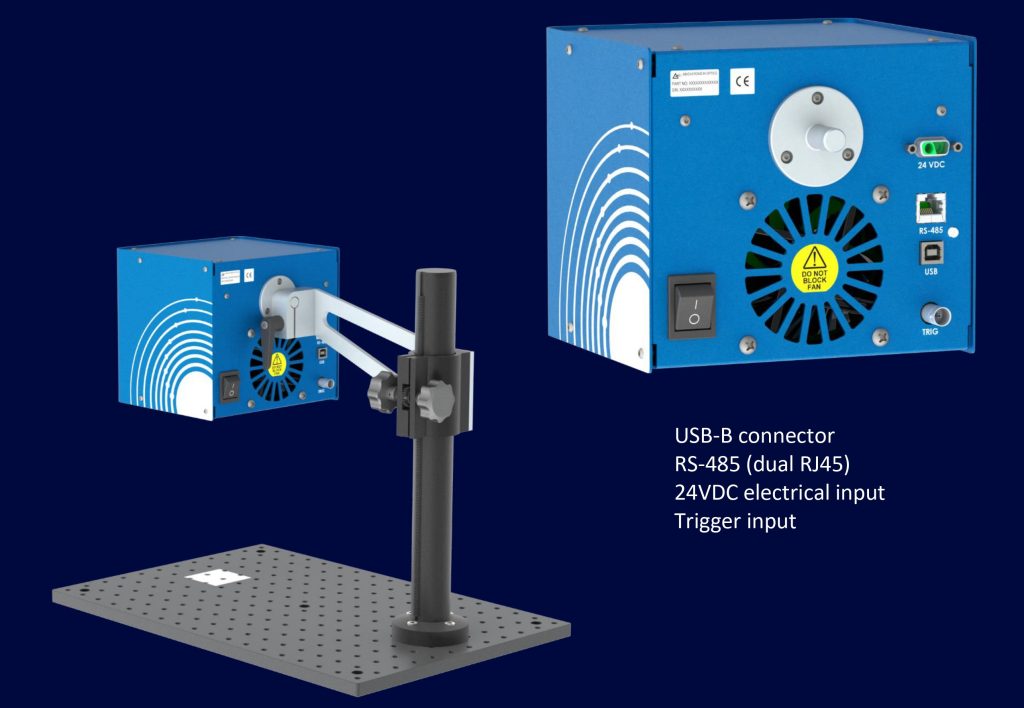

USB-B connector, RS-485 (dual RJ45),
24VDC electrical input, Trigger input

Additional Views

  • The USB connector (square “B” type) is located on the rear panel
  • A standard USB A/B cable is required to communicate with LumiSun
  • Communication is handled via Modbus RTU or GUI
    RJ45 connector available for communication with multiple units
  • An external power source supplies DC power to LumiSun
  • Alignment to WD is accomplished with a pair of red laser pointers
  • Flexible mounting and orientation enable adjustment
  • External remote on/off triggering capability included

FAQ

What differentiates the LumiSun-50 from other benchtop solar simulators?

It delivers IEC Class A+A+A+ performance over a 50 × 50 mm area with measured non-uniformity as low as 0.76%, 35 independently controlled wavelengths, spectral range 350–1250 nm, irradiance adjustable from 0.1 to 1.2 Suns, AM0 capable, and lifetime greater than 20,000 hours, all in a compact form with TEC cooling and laser-pointer alignment.  Next generation systems will support a spectral range of 350-1300 (AM0) and 350-1350 (AM1.5G).





IEC Class A+A+A+ over the 50 × 50 mm field. Non-uniformity is excellent both for the full spectrum and for each individual wavelength.

Integrated laser pointers project two red dots that converge at the optimal working distance. The illumination plane can also be rotated.

Yes. Independent channel control allows selective adjustment of spectral regions while the user-defined spectrum is programmed through the GUI.

Steady-state or pulsed operation with external trigger, RS-485 (Modbus RTU), USB, closed-loop current control, and GUI software that displays the live spectrum against the AM1.5G reference.

350-1300 nm with (AM0), 350-1350 (AM1.5G). Spectral deviation is less than 9% from 400-1100 nm and less than 12% from 350-1250 nm.
