LumiSun-220

Class A+A+A+

Large Area Solar Simulator

Data Sheet (PDF)

Features

  • Illumination area 220 x 220mm
  • High uniformity
  • IEC Class A+A+A+ compliant
  • 600mm working distance
  • Efficient low cost
  • Irradiance 0.1 to 1.2 Suns
  • Long LED Lifetime > 20,000 hours
  • Spectral range 350nm-1250nm
  • 36 λ individually controlled

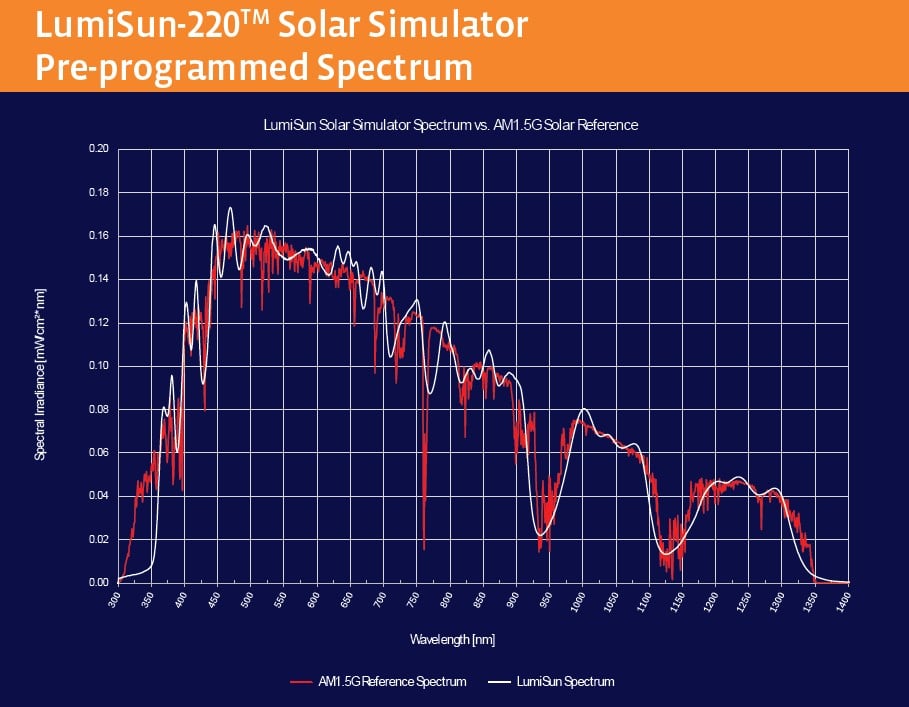

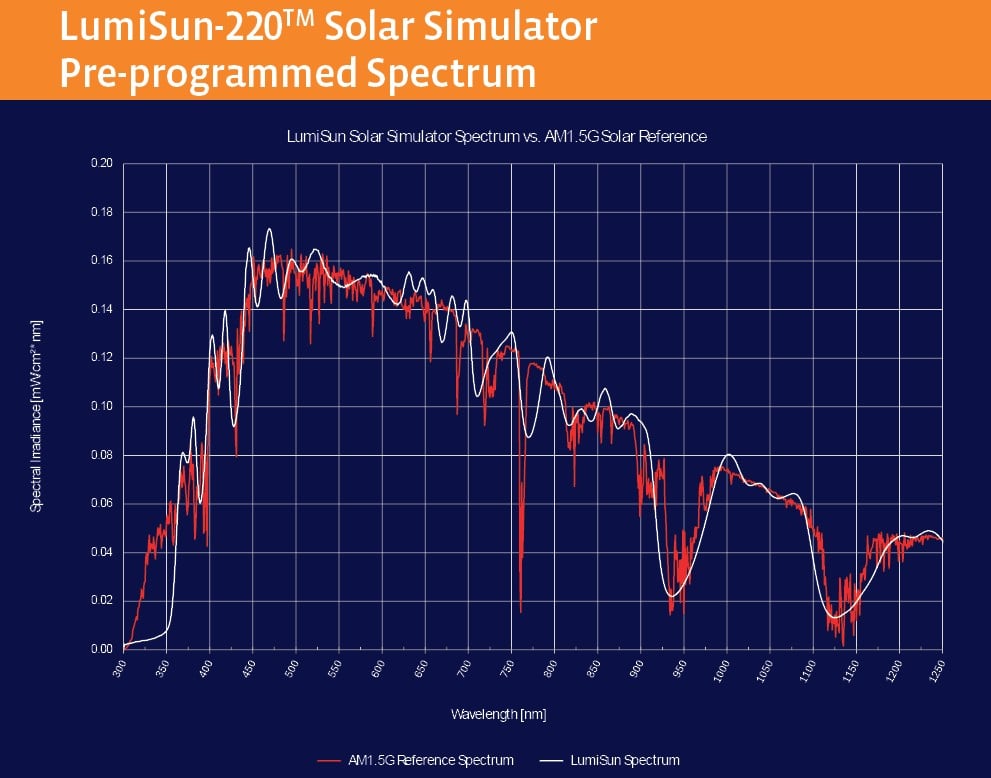

  • AM0 and AM1.5G superior spectral matching
  • User-friendly GUI allows individual control of each λ
  • RS485 & USB computer connection (Modbus RTU)
  • Pre-programmed & user-defined adjustable spectra
  • TEC for superior spectral intensity stability
  • Steady state or pulsed modes
  • LED current closed loop control

Spectral deviation:

< 9%    400nm-1100nm
< 12%  350nm-1250nm
< 15%    300nm-1200nm
Data Sheet (PDF)

Applications

PV Cell & Module Testing

  • Large area solar cells, multi-cell coupons, mini-modules
  • Evaluate degradation or light soaking performance (e.g. perovskite research)


Materials Testing

  • Accelerated aging
  • Intensity controlled studies
  • Space weathering

Solar Product Development

  • Batch testing of solar watches, calculators, sensors, lights
  • Sun Exposure for Biological Systems


Test Photoreactive Materials

  • Photodegradation
  • Water/air purification systems

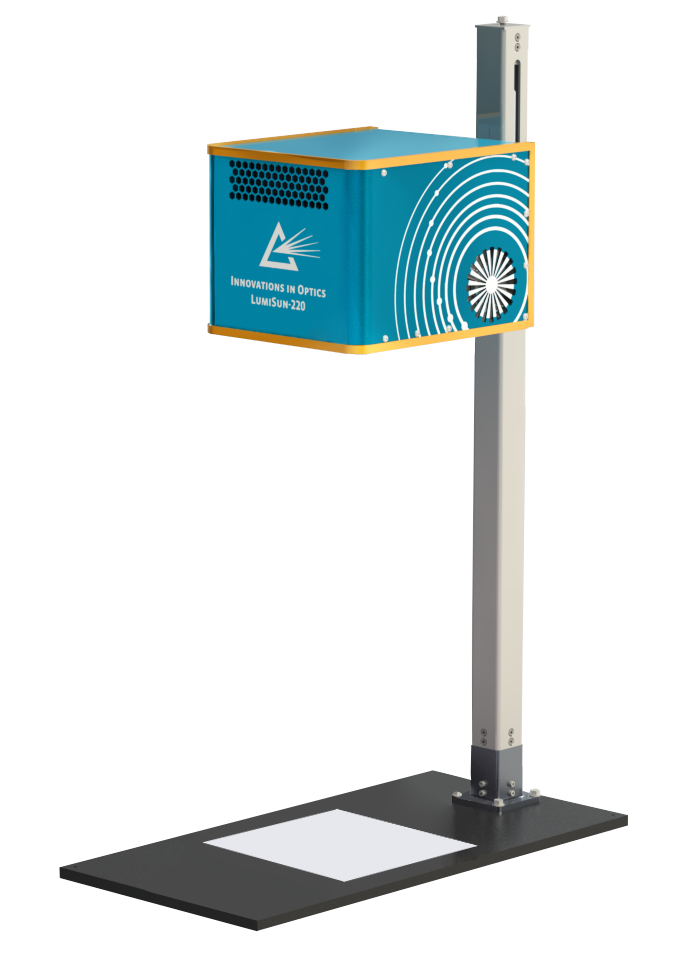

About the LumiSun-220

The LumiSun-220™ is a cost-effective LED solar simulator delivering Class A+A+A+ performance over a 220 mm × 220 mm area at a 600 mm working distance. It features 36 individually controlled wavelengths from 350 nm to 1250 nm with minimal spectral deviation. Irradiance is adjustable from 0.1 to 1.2 Suns in steady-state or pulsed modes. TEC cooling and closed-loop current control ensure excellent temporal stability and long-term reliability.

LumiSun-220™ leverages the same IOI intellectual property as our OEM solar simulators sold in the thousands to leading PV manufacturers. Patent-pending light collection optics and thermal management deliver uniform, stable output across the full spectrum and individual wavelengths. With LED lifetime exceeding 20,000 hours, it is a durable and flexible tool for advanced solar simulation.

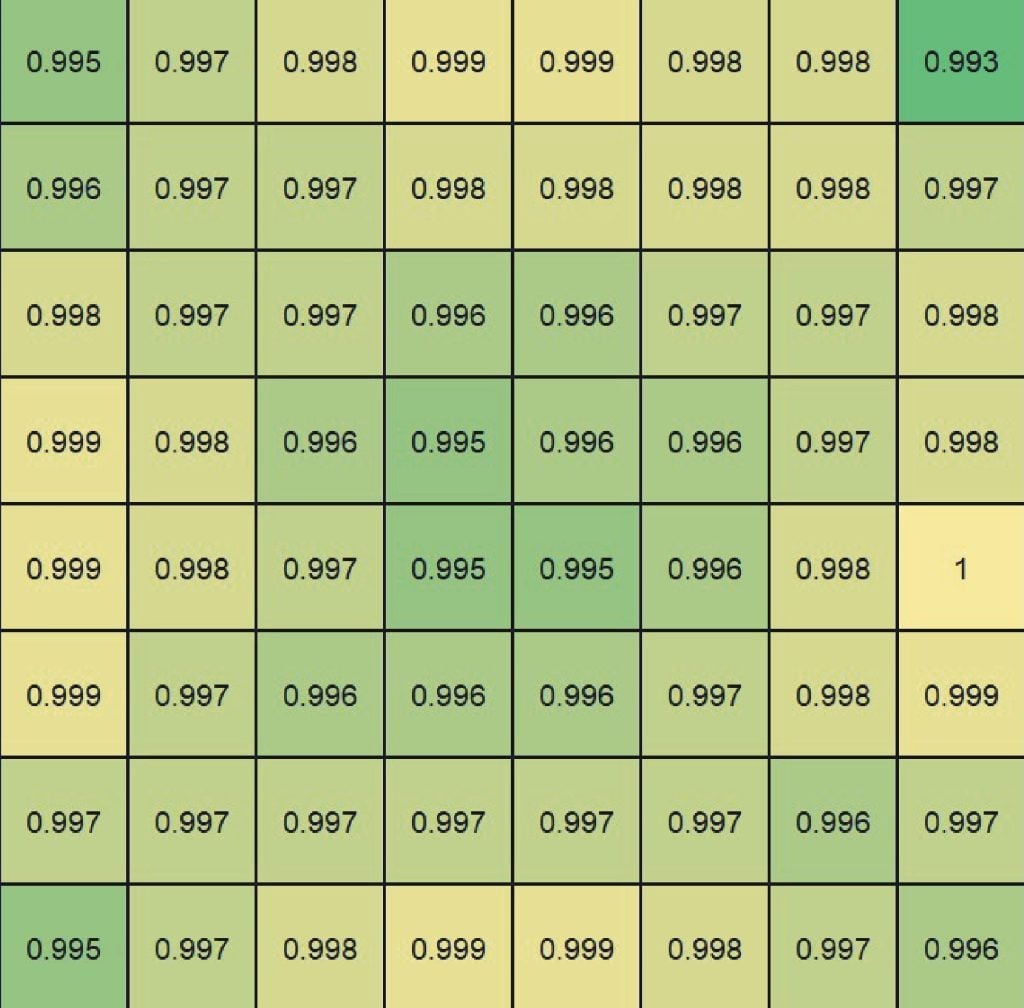

Uniformity

A+

Measured non-uniformity

<1%

Over entire illumination field

*Also excellent for each wavelength independently
